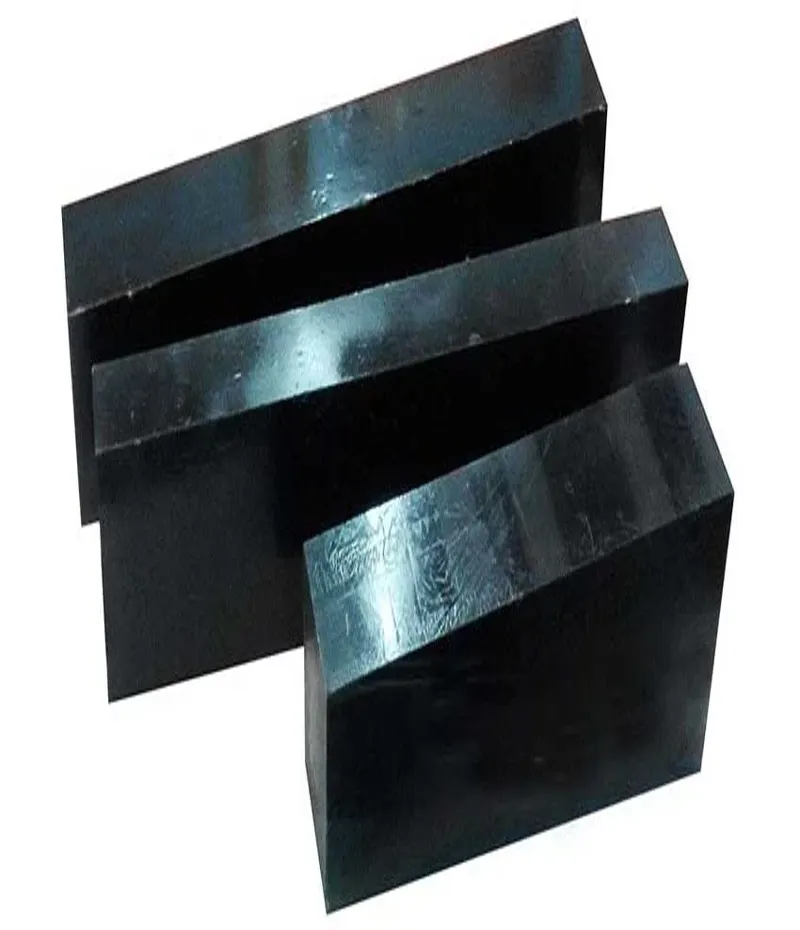

Carbon Brick – Resin Bonded
Main Chemical Compositions & Categories
Resin-Bonded Carbon Bricks are composed of high-purity CARBON (C) materials (e.g., natural or synthetic graphite) held together by a SYNTHETIC RESIN binder. They are typically subjected to a low-temperature bake (curing) rather than high-temperature firing, preserving the carbon structure.
| COMPONENT | CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| CARBON (C) | 90% to 99% | High non-wetting property | Superior slag/metal adhesion resistance |
| RESIN BINDER | 3% to 8% | Forms a strong carbon char upon curing | Low porosity and high mechanical strength |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Non-Wetting | OUTSTANDING | High carbon content prevents molten metal and slag from adhering to the surface. |
| Density/Porosity | VERY HIGH DENSITY, LOW POROSITY | Resin binder creates a strong, dense matrix upon curing, inhibiting infiltration. |
| Thermal Shock Resistance | EXCELLENT | High thermal conductivity and low expansion coefficient of carbon provide stress resilience. |
| Purity | EXCELLENT | Synthetic resin binders often contain fewer impurities than coal tar pitch. |
Advantages and Key Characteristics
Resin-Bonded Carbon Bricks are favored for applications requiring the chemical benefits of carbon combined with a cleaner, denser bond and superior handling strength compared to pitch-bonded types.
- High Mechanical Strength: The phenolic resin forms a dense, strong carbon char during the initial cure, giving the brick exceptional Cold Crushing Strength (CCS), which is vital for handling and installation.
- Low Porosity and Permeability: The resin fills the intergranular voids efficiently, resulting in a dense structure that significantly reduces the penetration of corrosive slag and metal.
- Reduced Impurities: Synthetic resins introduce fewer metallic impurities and potentially less harmful organic substances than coal tar pitch, leading to a cleaner final refractory product.
- Wider Application: The resin binder is widely used in high-performance Magnesia-Carbon (MgO-C) bricks for steel ladles and converters, where its strength enhances composite performance.
Typical Industries and Applications
This brick is used in critical lining applications where non-wetting and erosion resistance are paramount:
- Ferrous Industry (Steel): Ladle slag lines, Electric Arc Furnace (EAF) tapholes, and main linings for Basic Oxygen Furnaces (BOF) and Vacuum Degassers (VD).
- Non-Ferrous Industry: Troughs and linings for continuous casting equipment.
Furnace Areas and Service Zones
Resin-bonded types are specified for the permanent structures in contact with the melt:
- SLAG LINE: The primary zone for MgO-C variants, leveraging the resin bond for high resistance to chemical wear and thermal stress.
- TAPHOUSE AND RUNNER: Used where metal flow is high-velocity and the non-wetting property is required to maintain a clean channel.
- PERMANENT LINING: Can be used in the hearth of submerged arc furnaces.
Key Data Sheet Properties to Consider
Selection focuses on the strength and density imparted by the binder:
- Cold Crushing Strength (CCS): CRITICAL VALUE. Must be very high to ensure structural integrity.
- Bulk Density (BD): Must be high (e.g., > 1.7 g/cm3) to maximize material mass and conductivity.
- Apparent Porosity (AP): Must be extremely low (e.g., < 8%) due to the dense char formation.
- Resin/Carbon Yield: The percentage of the binder that successfully converts to solid carbon (char yield) indicates the final material density.
Technical Guidance: Like all carbon products, Resin-Bonded bricks are susceptible to OXIDATION (burning). When used in non-sealed environments, they must be protected by a sacrificial material or carefully placed to avoid exposure to air at high temperatures. The curing process for resin-bonded materials is less temperature-dependent than pitch-bonded materials, leading to faster, more reliable manufacturing.
