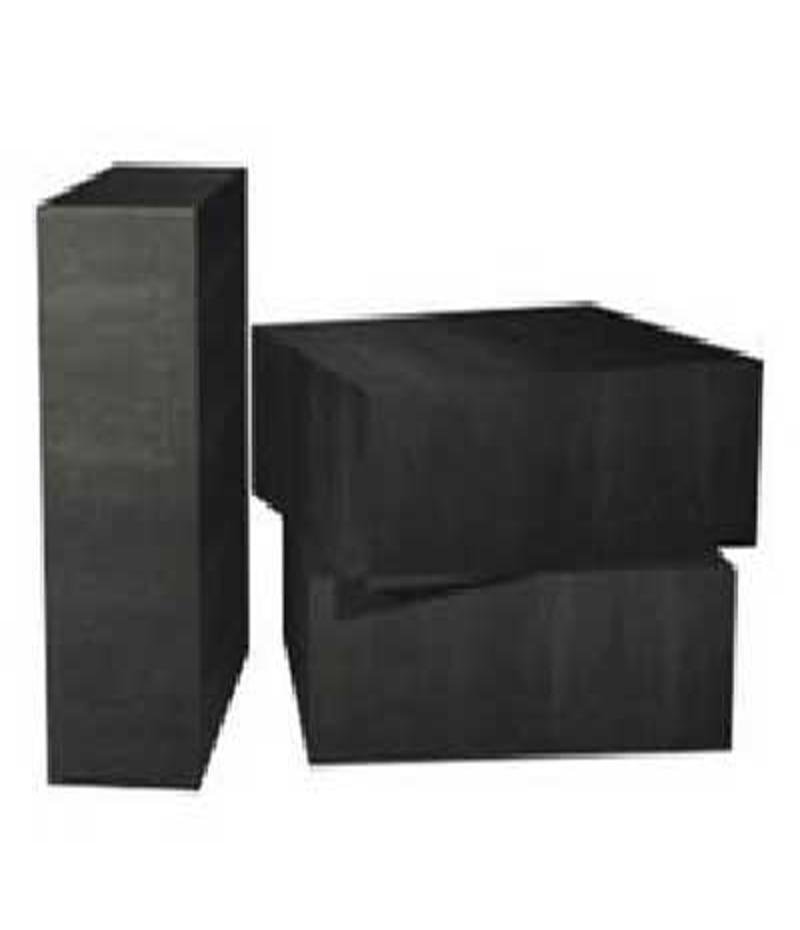

Carbon Brick – Pitch Bonded
Main Chemical Compositions & Categories
Pitch-Bonded Carbon Bricks are composed of high-purity CARBON (C) materials, such as petroleum coke, anthracite, or graphite, held together by a COAL TAR PITCH binder. The brick is typically baked at low-to-medium temperatures to carbonize the pitch.
| COMPONENT | CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| CARBON (C) | 90% to 99% | High thermal conductivity | Extremely low slag/metal wetting |
| ASH CONTENT | < 1% | High purity | Minimal contamination of molten metal |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Non-Wetting | OUTSTANDING | High carbon content prevents molten metal and slag from adhering to the surface. |
| Thermal Conductivity | VERY HIGH | Carbon efficiently transfers heat, which is essential for cooling the hearth lining. |
| Thermal Shock Resistance | EXCELLENT | Low thermal expansion and high conductivity dissipate thermal stress effectively. |
| Refractoriness | EXTREMELY HIGH | Carbon has no melting point and remains stable up to sublimation temperature. |
Advantages and Key Characteristics
Pitch-Bonded Carbon Bricks are critical for the structural integrity and longevity of the hearth and bottom of primary metallurgical furnaces due to carbon’s unique combination of properties.
- Corrosion Resistance: Carbon is virtually inert to iron, steel, and many non-ferrous metals. The non-wetting property ensures that corrosive agents cannot easily infiltrate the brick structure.
- Safety and Campaign Life: The high thermal conductivity allows for efficient cooling of the furnace hearth (usually via water or air), solidifying a protective “skull” of metal/slag on the surface, which drastically extends the campaign life and prevents breakouts.
- High Purity and Stability: The low ash and low impurity levels ensure minimal contamination of the molten charge. The brick remains structurally stable under load at extreme temperatures.
- Wear Resistance: The dense, rigid carbon structure resists mechanical erosion and abrasion from the movement of the molten metal bath.
Typical Industries and Applications
This brick is essential for primary metal production where large volumes of molten material are contained:
- Ferrous Industry (Iron): The absolute standard for Blast Furnace hearth and bottom linings (the crucible that holds the molten iron and slag).
- Non-Ferrous Industry: Cathode and sidewall blocks for Aluminum reduction cells (electrolysis pots).
- Chemical Industry: Specialized linings for furnaces involving highly corrosive chemical reactions.
Furnace Areas and Service Zones
They are specified for the permanent structures in contact with the melt:
- BLAST FURNACE HEARTH AND BOTTOM: The most crucial application, where the brick must withstand tremendous load, extreme heat, and constant chemical attack.
- ALUMINUM REDUCTION CELL: Used as the cathode block which conducts electricity and contains the molten aluminum.
Key Data Sheet Properties to Consider
Selection criteria focus on thermal performance, structural integrity, and purity:
- Bulk Density (BD): Must be high (e.g., > 1.55 g/cm3) to minimize porosity and maximize thermal conductivity.
- Thermal Conductivity: THE CRITICAL VALUE. Must be high (often reported in W/(m·K)) to ensure effective hearth cooling.
- Apparent Porosity (AP): Must be low (e.g., < 10%) to resist penetration by molten metal.
- Ash Content: Must be minimized to ensure high carbon purity.
Technical Guidance: Pitch-Bonded Carbon Bricks are susceptible to OXIDATION (burning) if exposed to oxygen at high temperatures (above 400°C). They must be installed within a sealed environment or protected by a hot face layer of inert gas or other refractory material. The installation requires specialized carbonaceous mortar.
