Calcium Silicate Pipe Cover

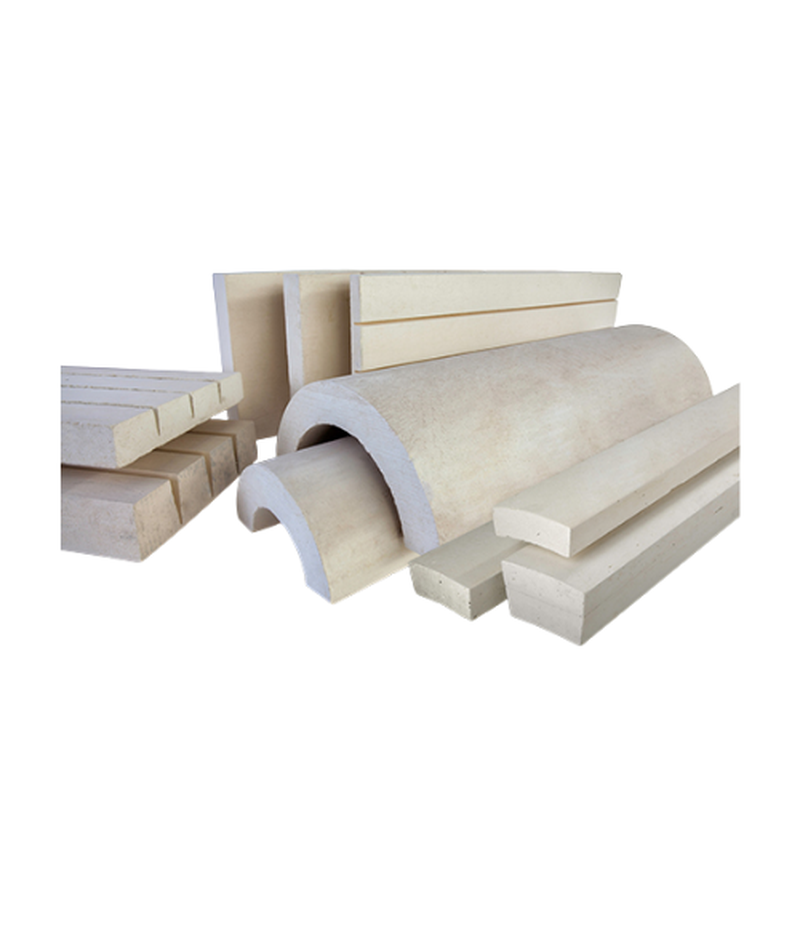

A Calcium Silicate (CS) Pipe Cover is a rigid, pre-formed insulation product manufactured from a blend of silica, lime (CaO), and reinforcing inorganic fibers. It is hydrothermally molded and autoclaved into two semi-cylindrical halves designed to precisely fit industrial piping. CS Pipe Cover is the industry standard for load-bearing, high-temperature pipe insulation due to its exceptional compressive strength, low thermal conductivity, and structural rigidity up to its maximum service temperature (MST).à
Main Components and Structure
The material’s physical strength and thermal efficiency derive from its micro-porous structure based on Calcium Silicate Hydrate (CSH) phases.
| PROPERTY | DESCRIPTION | PRIMARY ADVANTAGE |
| Form | Pre-formed semi-cylinders (two halves) | Allows for quick, snug fit onto existing and new piping. |
| Compressive Strength | HIGH | Can support the weight of metallic jacketing and personnel traffic without crushing. |
| Thermal Conductivity (k) | LOW | Efficient insulation through a high volume of microscopic air pores. |
| Non-Combustible | EXCELLENT | Purely inorganic; safe for process environments. |
| CLASSIFICATION | MAXIMUM SERVICE T | PRIMARY USE |
| Standard Grade | ~650°C (1200F) | Medium-temperature steam and process piping. |
| High-Temp Grade | ~1000°C (1832 F) | High-pressure steam and extreme process lines. |
Advantages and Key Characteristics
CS Pipe Cover is the preferred insulation solution for large industrial piping systems that require a robust, long-lasting, and structurally sound thermal barrier.
- Durability and Load-Bearing: Unlike flexible materials, CS sections are rigid and highly resistant to mechanical abuse, making them ideal for pipes that require frequent maintenance access or are in areas with personnel traffic. They are critical for supporting the outer metal jacketing.
- Excellent Thermal Performance: Provides reliable insulation, reducing heat loss from pipes and ensuring stable process temperatures while keeping the outer surface safe to touch.
- Corrosion Under Insulation (CUI) Mitigation: The material is non-corrosive to the underlying metal, and its inherent resistance to moisture helps prevent the accumulation of water on the pipe surface, significantly reducing CUI risk.
- Speed and Ease of Installation: The pre-formed sections are simply placed around the pipe and secured with bands or wire before the outer jacketing is applied, offering a faster installation process than cutting large flat boards.
Typical Industries and Applications
CS Pipe Cover is a staple in energy and process industries:
- Oil and Gas / Petrochemical: Insulation for process pipes, especially steam lines and hot utility lines in refineries and plants.
- Power Generation: Insulation for main steam lines, high-pressure feedwater lines, and auxiliary piping in power plants.
- Chemical Industry: Insulation for chemical transport lines and reactors requiring precise temperature control.
Key Data Sheet Properties to Consider
Selection is based on the pipe size and required mechanical/thermal performance:
- Maximum Service Temperature (MST): CRITICAL VALUE. Must exceed the pipe’s operating temperature.
- Pipe Diameter and Wall Thickness: The cover must match the outer diameter (OD) of the pipe to ensure a snug fit.
- Compressive Strength: High compressive strength is required to resist crush damage during installation and maintenance traffic.
Technical Guidance: Pipe covers must be installed in a staggered-joint configuration (joints in the inner layer should not align with the joints in the outer layer, if multi-layer) to break the heat path and prevent heat loss. A vapor barrier must be applied over the CS to prevent moisture from the atmosphere from condensing and compromising the insulation value in cold or fluctuating environments.
