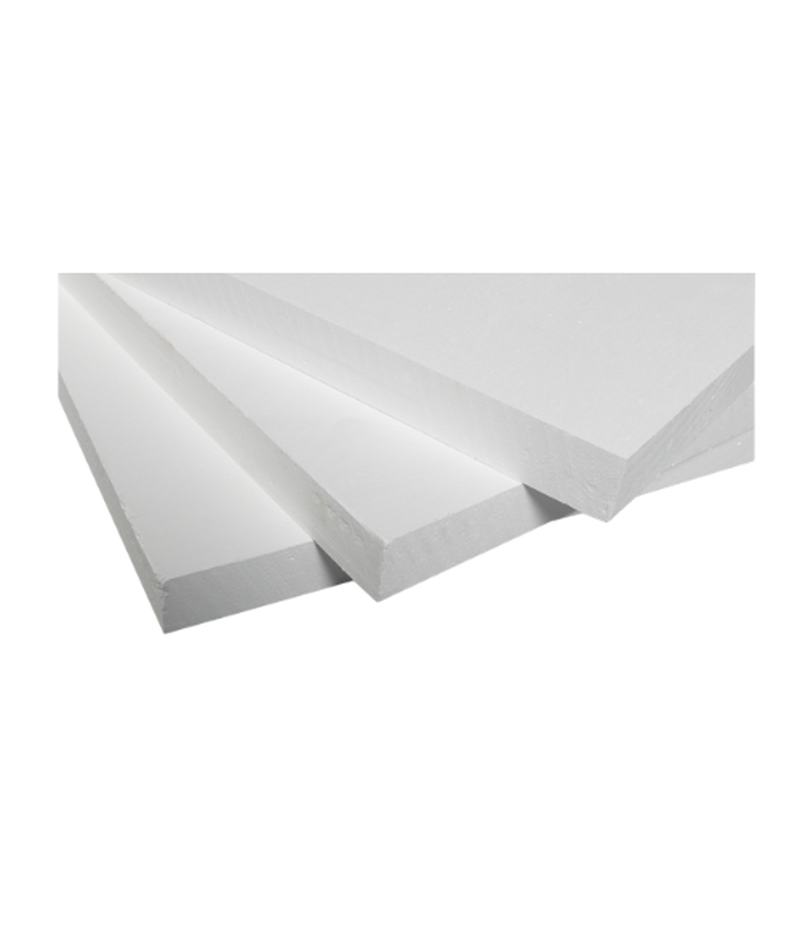

Calcium Silicate Board
Calcium Silicate (CS) Board is a rigid, lightweight, and high-strength inorganic insulation product made from a blend of silica, lime (CaO), and reinforced fibers (historically asbestos, but modern products use cellulose or inorganic fibers). It is formed under high pressure and temperature in an autoclave process. CS board is primarily used as structural, load-bearing backup insulation behind the hot face of refractory linings or as high-temperature pipe and vessel insulation, where its combination of high compressive strength, low thermal conductivity, and moisture resistance is essential.
Main Components and Structure
CS board’s physical strength and low k value come from its micro-porous structure, often based on hydrothermally grown Calcium Silicate Hydrates (CSH) phases.
| COMPONENT | COMPOSITION | PRIMARY ADVANTAGE |
| CSH Phases | CaO / SiO2 / H2O | Provides rigidity and a highly porous, insulating structure. |
| Reinforcement | Non-asbestos fibers (cellulose, synthetic) | Increases mechanical strength and handling durability. |
| CLASSIFICATION | MAXIMUM SERVICE T | PRIMARY USE |
| High-Density CS | ~650°C to 1000°C | Structural insulation for vessels and as a fire stop/barrier. |
| Low-Density CS | ~850°C | Pipe and vessel insulation, lower k value. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Compressive Strength | HIGH | Can support the weight of linings, pipes, or personnel (load-bearing insulation). |
| Thermal Conductivity (k) | LOW | Highly porous microstructure minimizes heat transfer. |
| Moisture Resistance | GOOD | Chemically stable against water; resists fungal growth and rot. |
| Non-Combustible | EXCELLENT | Purely inorganic composition does not burn or produce smoke. |
Advantages and Key Characteristics
CS Board is the most common rigid, structural insulation for medium to high temperatures, where its stability and safety characteristics are paramount.
- Load-Bearing Capability: The primary advantage over soft insulation like blankets or mineral wool. It can bear the weight of heavy refractory linings (e.g., brick) without crushing, making it ideal for the floors and lower walls of furnaces.
- Fire Safety: Due to its inorganic nature, CS board is non-combustible and does not contribute fuel to a fire, making it a key component in passive fire protection and industrial fire barrier walls.
- Corrosion Protection (5$\text{CUI}$): The material is non-corrosive to steel and aluminum, and its ability to wick moisture away from the metal surface helps to mitigate Corrosion Under Insulation.
- Ease of Installation: Boards and pre-formed pipe sections are rigid, lightweight, and easily cut with standard tools, simplifying installation in large industrial settings.
Typical Industries and Applications
CS board is widely used in high-temperature process equipment and building materials:
- Industrial Furnaces: Backup insulation for the shell behind dense firebrick or castable linings, particularly on the hearth (floor) where loads are heaviest.
- Power Generation: Insulation for boilers, flues, breechings, and precipitator casings.
- Oil and Gas/Chemical: Sectional insulation for large-diameter piping, vessels, and reactors up to 1000°C.
- Passive Fire Protection: Used as fire-rated barriers, sheathing, and fire stops in industrial facilities and commercial construction.
Key Data Sheet Properties to Consider
Selection is based on the required mechanical strength and maximum temperature:
- Maximum Service Temperature (MST): CRITICAL VALUE. Must match or exceed the cold-face temperature of the hot-face lining.
- Compressive Strength: CRITICAL VALUE. Look for the minimum strength (e.g., 3.0 MPa) required to support the weight of the overlying refractory lining and any mechanical stress.
- Thermal Conductivity (k): Check the k value at the required mean operating temperature to ensure the necessary insulation value is achieved.
Technical Guidance: CS board loses its chemically bonded water upon initial heat-up, which must be vented. For furnace applications above 1000°C, a layer of higher-temperature insulation (like RCF or microporous insulation) may be required as an intermediate layer to protect the CS board from overheating.
