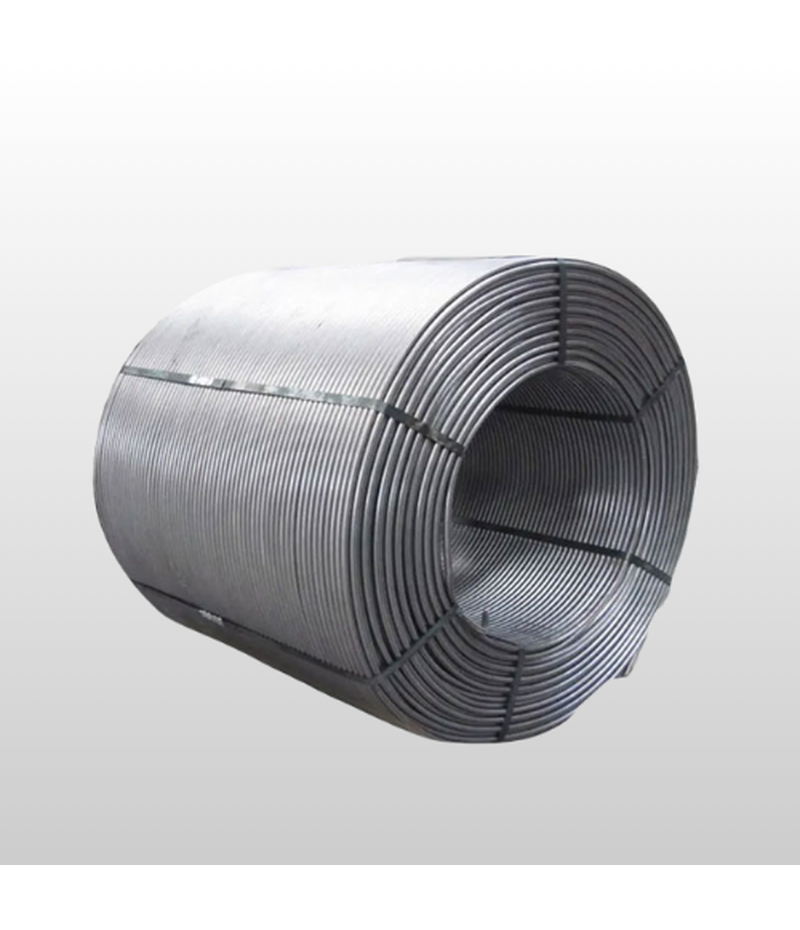

Calcium Metal – Pieces / Cored Wire
Calcium Metal (Ca) is an alkaline earth metal, which, in its pure metallic form, is an extremely powerful deoxidizer, desulfurizer, and inclusion modifier for molten steel and non-ferrous alloys. It is never added as pure pieces directly to open steel because of its high reactivity and low boiling point. Instead, it is supplied as small pieces for alloying or, most commonly, contained within a cored wire for precise, deep-bath injection during secondary steel refining.
Main Function and Reaction
Calcium is utilized for its exceptional chemical reactivity with oxygen, sulfur, and specific non-metallic inclusions.
| COMPONENT | CHEMICAL FORMULA | PROPERTY HIGHLIGHT |
| Calcium | Ca | Low boiling point (~1484°C), high chemical affinity for O and S. |
| Reaction Byproduct | CaO, CaS, CaS·Al2O3 | Stable, spherical, low-melting inclusions (liquefied at steel T). |
| CLASSIFICATION | DELIVERY METHOD | PRIMARY APPLICATION FOCUS |
| Purity Agent | Cored Wire Injection | Shape control of inclusions and ultra-low desulfurization. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Desulfurization Power | EXTREME | Highly effective at removing trace sulfur down to < 0.001%. |
| Inclusion Modification | CRITICAL | Converts brittle, high-melting alumina inclusions (Al2O3) into soft, spherical, low-melting Calcium-Aluminates (CaS·Al2O3). |
| Yield/Safety | LOW | Due to high volatility, pure Ca is impractical and dangerous unless contained (i.e., in cored wire). |
The Inclusion Modification Mechanism (Shape Control)
This is the most critical use of calcium in high-grade steel. When steel is deoxidized with aluminum (Al), sharp, solid, and stringer-like Al2O3 inclusions are formed. These inclusions are detrimental to the steel’s properties (e.g., they cause nozzle clogging during casting and reduce fatigue life).
The addition of calcium modifies these inclusions:
The resulting calcium aluminates are globular and remain liquid or soft at steel casting temperatures. This is vital because liquid inclusions:
- Prevent Nozzle Clogging: They flow smoothly through the submerged entry nozzle.
- Improve Mechanical Properties: They are less damaging to the material’s internal structure during rolling, greatly enhancing the steel’s ductility, formability, and isotropy (uniformity of properties in all directions).
Delivery Method: Cored Wire
Due to calcium’s low boiling point (~1484°C), which is below the temperature of molten steel (~1600°C), adding pure pieces causes immediate, explosive vaporization, leading to massive yield loss and safety hazards.
Cored Wire solves this:
- The Wire: A steel sheath (wire) is filled with calcium powder or alloy (like CaSi).
- Injection: The wire feeding machine drives the wire deep below the surface of the molten metal.7 The steel sheath protects the calcium until it reaches the zone of low ferrostatic pressure, where the calcium melts/vaporizes and is dissolved into the steel with high efficiency (25% to 50% yield).
Typical Industries and Applications
- High-Quality Steel: Production of bearing steel, line pipe steel (oil & gas), and automotive sheet steel, where strict inclusion control and low sulfur are mandatory.
- Non-Ferrous Alloys: Used as an alloying element in some high-strength aluminum alloys.
Technical Guidance
- Optimal Dosage: Calcium treatment is highly sensitive. An underdose leaves harmful Al2O3 inclusions, while an overdose creates large, potentially harmful calcium sulfide or lime-based inclusions. The optimal residual Ca range in the steel is often measured in very narrow parts per million (ppm) ranges (e.g., 5 ppm to 20 ppm).
- Pre-conditions: Calcium treatment is only effective after the steel has been fully deoxidized (typically with Al) and the oxygen activity is very low.
