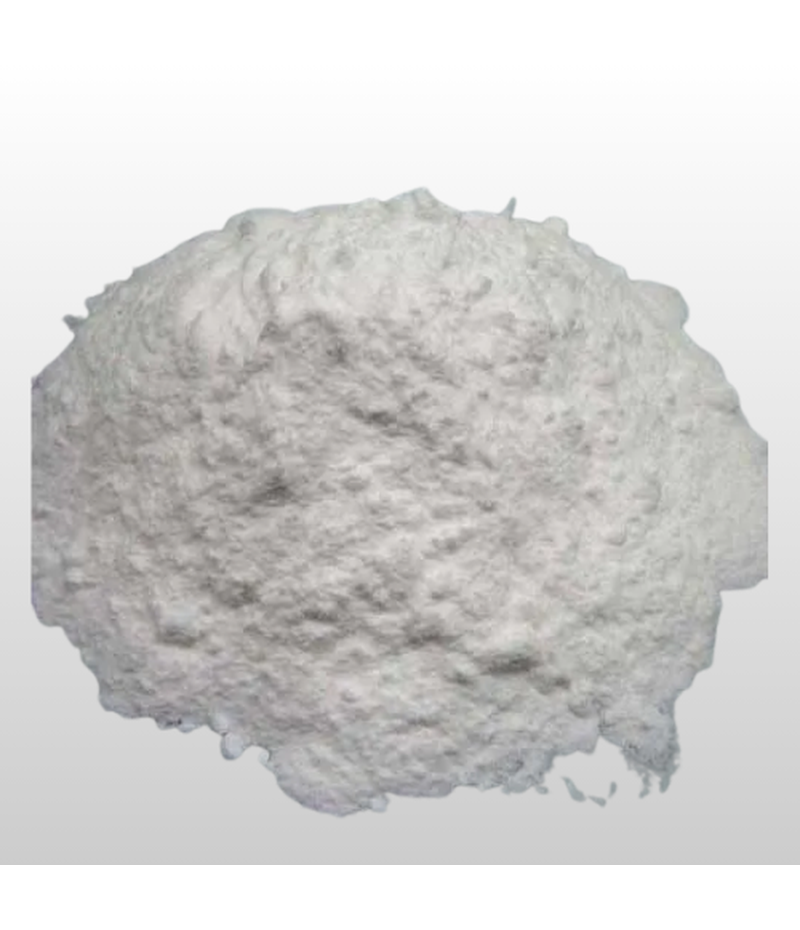

Borax / Borates (Na₂B₄O₇)
Borax (sodium borate, technically Na2B4O7 – 10H2O) is a naturally occurring mineral used industrially as a source of Boron Oxide (B2O3). Boron compounds are highly valued in high-temperature processes for their ability to lower the melting point of various materials, act as a powerful flux to scavenge unwanted oxides (slags), and stabilize glassy structures (vitrification).
Main Composition and Release
Borax is a hydrate, but its industrial value lies in the amount of B2O3 it delivers to the process.
| KEY FORM | CHEMICAL FORMULA | B2O3 Content | PRIMARY USE FOCUS |
| Borax Decahydrate | Na2B4O7 – 10H2O | 36.5 % | General flux, low-temperature uses (cleaning, fertilizer). |
| Borax Pentahydrate | Na2B4O7 – 5H2O | 48.1 % | Intermediate hydration, higher B2O3 per unit mass. |
| Anhydrous Borax | Na2B4O7 | 69.2 % | High-temperature metallurgical flux, minimum moisture introduction. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Fluxing Power | HIGH | Boron Oxide readily combines with metal oxides (Fe2O3, Al2O3-SiO2, etc.) to form low-viscosity, low-melting-point slags. |
| Glass Former | STRONG | B2O3 integrates into silicate structures, improving chemical resistance, thermal shock resistance, and lowering the melt temperature. |
| Cleaning Agent | EXCELLENT | Used to dissolve and float off surface oxides and impurities. |
Applications and Key Characteristics
Borax is critical in any process requiring a clean metal surface, a stabilized glass, or a reduction in the required processing temperature.
- Metallurgical Flux (Scavenging Slag): In foundry, welding, and brazing operations, borax is applied to the surface of molten metal or the joint area. It quickly dissolves metal oxides (which can prevent proper alloy mixing or welding) and forms a protective, glassy layer (slag) that is easily skimmed off or displaced.
- Refractory/Ceramic Manufacturing: Borates are added to refractory mixes and glazes as a vitrifying agent. They lower the firing temperature of ceramic and glass batches, save energy, and enhance the final product’s properties like chemical durability and thermal expansion control.
- Fiberglass Production: Borax is an essential component in the manufacturing of fiberglass insulation and textile glass. It lowers the viscosity and melting temperature of the glass batch, making it easier to draw into fine fibers.
- Fire Retardant: When heated, borates release water, absorbing heat, and forming a protective glaze on materials, leading to its use in certain fire-retardant formulations.
Typical Industries and Applications
- Steel and Precious Metal Refining: Used to clean the surface of molten metal and to aid in the recovery of precious metals from ore concentrates.
- Welding and Brazing: Used as a flux to ensure clean, strong joints by removing surface oxides.
- Glass and Ceramics: Used as a batch ingredient in frit, glazes, fiberglass, and specialty boron-silicate glasses (e.g., Pyrex).
Key Data Sheet Properties to Consider
- Anhydrous Content: For high-temperature metallurgy, Anhydrous Borax is preferred to minimize the introduction of water (steam) into the melt, which can cause sputtering, gas porosity, and cooling.
- Purity: High purity is essential for technical applications like optical glass or specialty alloys to prevent unwanted contamination.
- Particle Size: Granular grades are preferred for general fluxing and melting; fine powders are used for glazes and specialized mixes.
Technical Guidance: When selecting a borate product, always confirm the form (Decahydrate, Pentahydrate, or Anhydrous) based on the maximum processing temperature and the tolerance for water/steam in the system.
