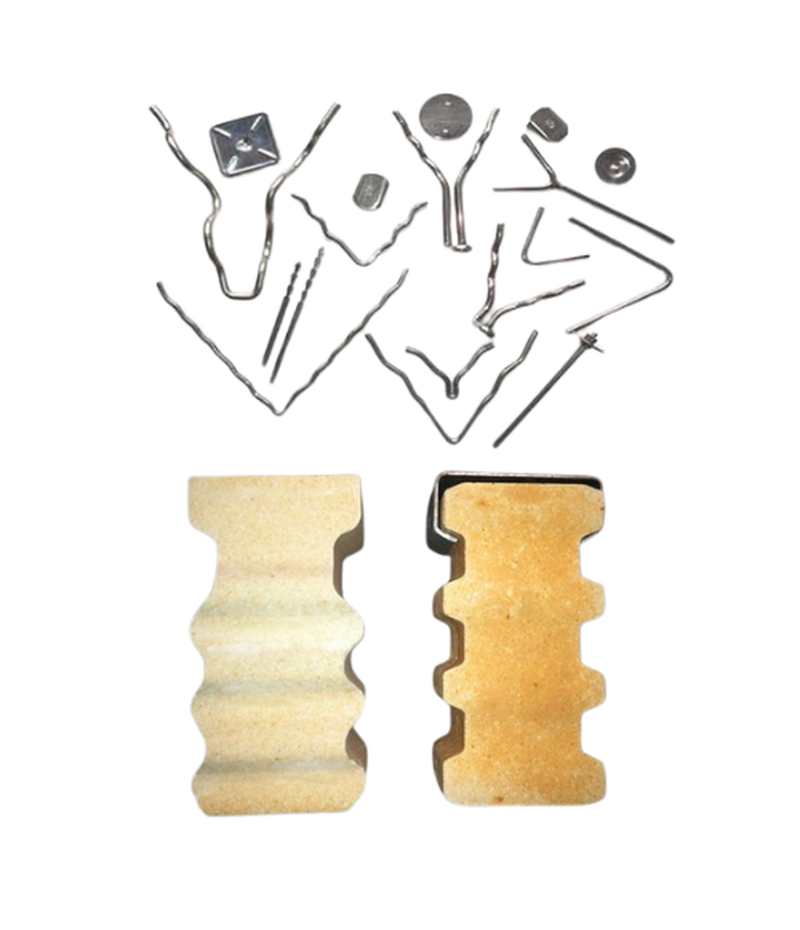

Anchors (Ceramic / Stainless Steel)
Refractory Anchors are specialized hardware used within monolithic refractory linings (like Refractory Castables and Refractory Mortars & Mixes) to prevent the lining from falling away from the vessel shell. They provide mechanical support, especially as the lining shrinks during initial dry-out and heating, and as stresses build up during service.
Anchors are categorized primarily by their material, which determines their maximum service temperature and the type of refractory they can support:
| ANCHOR TYPE | MATERIAL COMPOSITION | PRIMARY FUNCTION / LIMITATIONS |
|---|---|---|
| Stainless Steel | Heat-Resistant Alloys (e.g., 310, 330, 304) | Used for low to medium temperatures (up to ~1250°C). Provides flexibility but metal softens and oxidizes at higher heat. |
| Ceramic | High-Alumina (Al₂O₃) or Mullite | Used for high to ultra-high temperatures (up to 1800°C). Maintains strength at high heat but is brittle and susceptible to impact damage. |
CLASSIFICATION
- Engineering Focus: Refractory Support
- Primary Application Focus: Mechanical integrity and thermal compatibility; Securing Monolithic Linings in furnaces, stacks, and cyclones.
Key Performance Metrics
| PROPERTY | STAINLESS STEEL | CERAMIC |
|---|---|---|
| Maximum Service Temp. | Limited by oxidation and creep (~1250°C) | Limited only by the material’s melting point (~1800°C) |
| Installation Ease | HIGH (flexible, welded) | LOW (brittle, requires special mounting) |
| Corrosion Resistance | Good (but subject to chemical attack) | Excellent (inert to most slags/gases) |
- Stainless Steel Anchors (Metallic Anchors)
- Design: Most commonly Y, V, or straight rod shapes. They are typically welded directly to the steel shell before the castable is poured or rammed.
- Function: They mechanically key the castable to the shell. The alloy composition (e.g., 310 or 330 steel) is crucial, as the anchor must resist softening and oxidizing at the target interface temperature, which is always lower than the hot face temperature due to the refractory lining’s insulating properties.
- Ceramic Anchors
- Design: Usually large, tile-like pieces with a hole, or peg shapes. They are installed into the castable and mechanically locked into the lining structure or fastened via a non-metallic pin.
- Function: They are required in the hottest sections of furnaces where the metal anchor temperature would exceed ~1250°C and rapidly fail due to creep or melting. They are chemically stable and will not contaminate the refractory or the process environment.
- Installation Principles (Refractory Castables)
- Coverage: Anchors are generally installed to cover ~5% of the wall area and are staggered to provide uniform support.
- Depth: They are installed deep into the lining but must not touch the hot face, as that could create a localized stress point or chemical incompatibility. They typically penetrate 2/3 to 3/4 of the lining thickness.
- Lining Type: Stainless steel anchors are often used in dense castables, while ceramic anchors are mandatory for high-temperature insulation or porous linings to prevent structural collapse.
