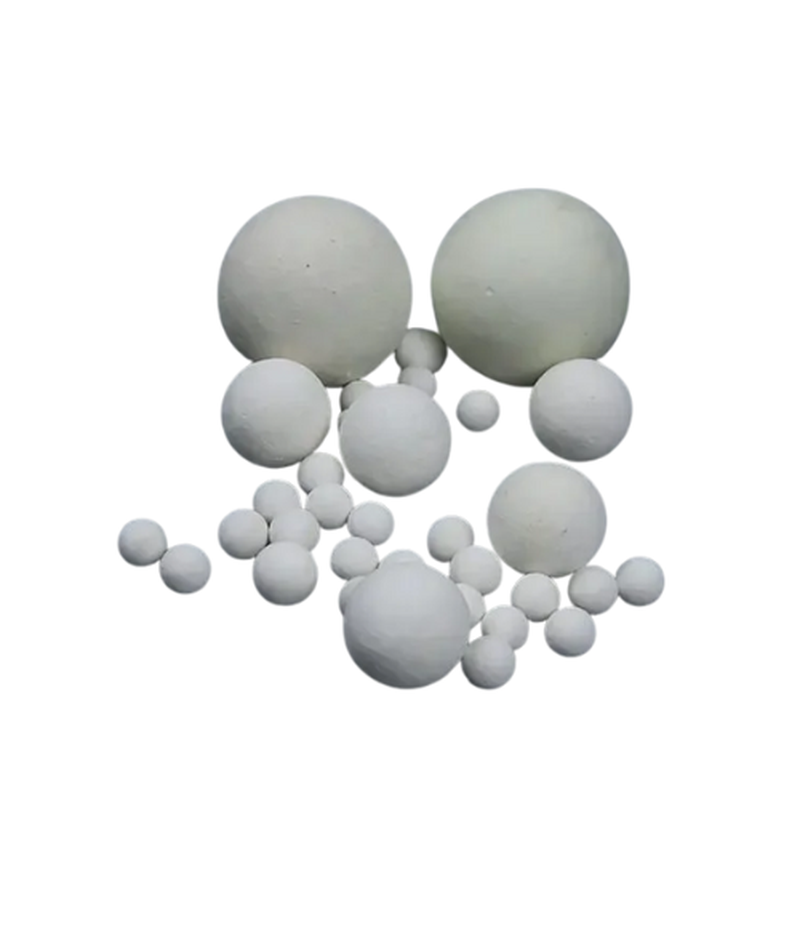

Alumina Grinding Balls
Alumina Grinding Balls are dense, high-purity ceramic media used in ball mills, jar mills, and attrition mills for the milling, grinding, and dispersion of raw materials. They are a superior alternative to natural stone, steel, or low-grade ceramic balls, offering enhanced efficiency, reduced wear, and minimal product contamination.
Main Chemical Compositions & Categories
Grinding balls are sintered ceramics with high Alumina (Al2O3) purity. The purity level directly correlates with hardness, density, and wear resistance. They are fabricated by pressing, firing, and sometimes sintering fine alumina powder.
| CATEGORY | Al2O3 Content | TYPICAL DENSITY | PRIMARY ADVANTAGE |
| High Alumina | ~92% | $3.60 g/cm3 | Economical, good balance of wear and cost. |
| Ultra-High Alumina | ~95% to 99% | $3.70 g/cm3 to $3.85 g/cm3 | Maximum grinding efficiency and purity; used where contamination is critical. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Hardness (Mohs) | 9 (Second only to diamond) | Excellent abrasion resistance; minimal media wear and long service life. |
| Density (Bulk) | HIGH | Higher density translates to greater impact energy, improving grinding efficiency and speed. |
| Corrosion/Contamination | NEGLIGIBLE | Chemically inert; minimal material is released into the ground product, maintaining product purity. |
| Ball Shape | SPHERICAL | Uniform shape maximizes contact area and minimizes localized stress/wear. |
Advantages and Key Characteristics
Alumina Grinding Balls significantly improve the efficiency and quality of grinding operations, particularly in continuous or high-volume processing environments.
- High Grinding Efficiency: Due to their high density and exceptional hardness, they impart more kinetic energy during milling, allowing for shorter grinding times or the achievement of finer particle sizes compared to less dense media.
- Low Wear Rate: The extreme hardness of the alumina ceramic means the media itself wears down very slowly. This reduces replacement costs and, critically, minimizes the introduction of foreign material (contamination) into the final product.
- Non-Contaminating: Unlike steel balls that introduce metallic iron (a source of discoloration or chemical impurity), alumina media is chemically inert and white, making it the preferred choice for white ceramics, glazes, paints, and clear coatings.
- Wide Range of Sizes: Available in sizes from 0.5 micro-beads up to 50 mm balls, allowing the media to be optimized for different mill types and targeted particle sizes.
Typical Industries and Applications
This specialized material is vital in various fine-milling operations:
- Ceramics and Glass: Grinding raw materials like quartz, feldspar, glazes, and pigments for tiles, sanitaryware, and tableware.
- Paints and Coatings: Dispersion and grinding of pigments, dyes, and fillers to achieve color consistency and optimal particle size.
- Mining and Minerals: Fine grinding of ores, limestone, cement, and specialty chemicals.
- Pharmaceuticals and Food: Used in specialized mills where high purity and zero contamination are non-negotiable.
Technical Guidance and Selection
Selection is based on the grinding goal and the mill equipment:
- Purity Level: Select 99% Ultra-High Alumina for applications requiring absolute minimal contamination (e.g., electronic ceramics, high-value pigments). Use 92% High Alumina for general, high-volume milling of non-sensitive materials (e.g., structural ceramics).
- Size Selection: Larger balls (> 20 mm) are used for breaking down large particles (coarse grinding). Smaller balls (< 10 mm) are used for achieving fine particle sizes and high surface area (fine grinding/dispersion).
- Mill Type: Used in various mills, but particularly effective in batch ball mills and continuous wet/dry milling systems. The total media charge volume and ball size distribution must be optimized for the specific mill.
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
